Tri Deck Finish Mower

Free Shipping 239-357-1853 Craig.

($25,450) The FP-3132 Tri Deck Finish Mower comes as a complete unit.

YouTube Video:         https://youtu.be/My5QmTdgKcY

PRODUCT INFORMATION:

The Turf Pride FP-3132 Tri Deck features unique enclosed decks, produces excellent mowing action and reduces hazardous debris discharge. Heavy-duty 7-gauge deck frames are equipped with an anti-scalp roller system as standard equipment. Cutting Width 132" - Cutting Height 1/2" to 4" Parking Jack standard equipment.

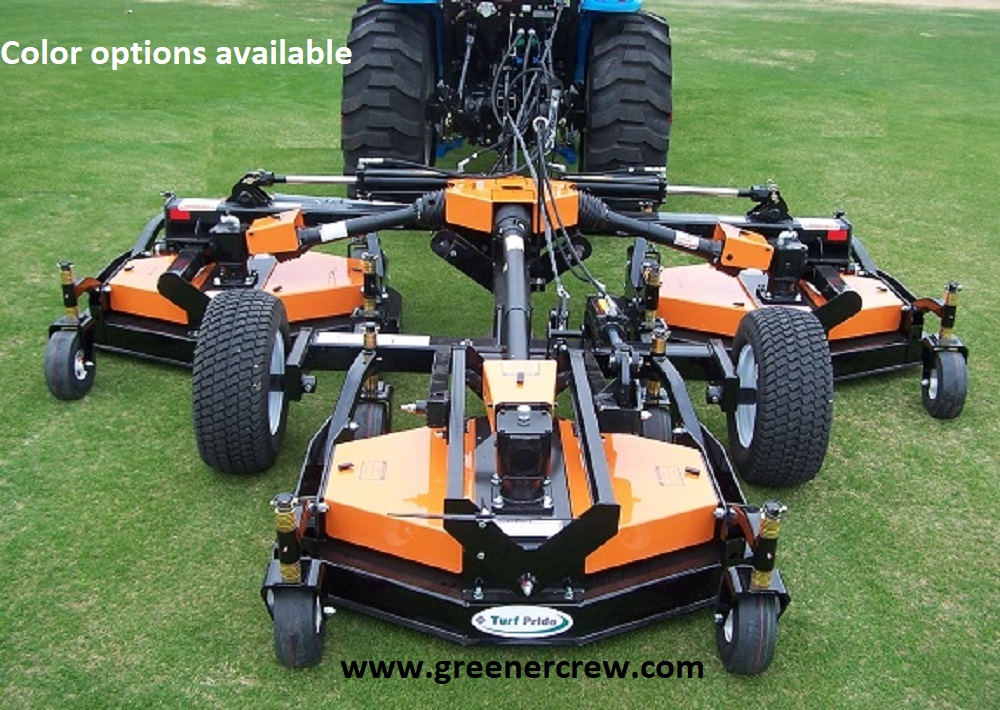

Color options available. Red, Orange and Green.

SPECIFICATIONS:

Hitch Type Pull Type, Clevis Hitch with 3-positions.
PTO HP Required 40 HP (minimum).
Gearbox RPM 540.
Drive line Size Category IV 80-degree CV (main) Category III (wing) Wing Section.
Lift Arms 3" x 5" x ¼" Steel Tubing.
Wing Flex – Operates from 30 degrees up to 10 degrees.
Down Transport Tires (2) 23 x 8.5 x 12"
Deck Widths (3) 48" Deck Construction 3/16" Steel.
Blade Rotation Clockwise Blade Tip Speed Approx. 15,000 FPM.
Gauge Wheels (12) 3-1/4" x 10" solid or pneumatic.
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"
Wing Deck Flex 10 degree side-to-side and front-to-rear – independent of wing frame.
Belts "HB" Size Kevlar Belt Adjustment Spring loaded idler.
Anti-Scalp Roller Sizes Front: 3" x 5" Rear: 3" x 13"

FEATURES:

Fabricated 7 Gauge Decks.
Commercial Grade Spindles.
5-Year Gearbox Limited Warranty.
Kevlar Reinforced Belts.
4x4 Inch Boxed Wing Section Lift Arms.
Choice of Colors.

Cutting Width: 11 ft.
Cutting Height: 3/4 to 41/4 inches.
Transport Width: 6 ft 6 inches.
Transport Height: 6 ft 3 inches.
Transport Length: 12 ft.
Minimum Tractor HP: 30 PTO.
Type Hitch: Pull type, Clevis, Three Point Position.
Gearbox: 45 HP cent.
Tractor PTO speed: 540 RPM.
Drive-line size:: Category 4 CV (Main) Category 3 (Decks).
Wing section Lift arms: 4 x 4 inch Boxed Section.
Wing Flex: 30" Up & 10 Degrees Down.
Wing Deck Flex: 10 Degree Side to Side, 10 Degree F.
Tire size: 23 x 9.5 (2).
Deck Widths: (3) 4 ft.
Deck Plate: 7 gauge.
Blade Tip speed: 18,468 FPM.
Gauge Wheels: 10 x 4 inches.
Belt: (1) per Deck "B" size Kevlar.
Belt adjustment: Spring Loaded Idler.
Deck Overlap: 6 inches.
Blade Overlap: 1 1/2 inches.
Front roller size (Standard): 3 x 5 inches.
Approximate Weight: 2450 lbs.

Other Features:

Underside anti-scalp roller kit for each deck, double acting hydraulic cylinder.
1-Year limited Warranty with a 5-year gearbox limited warranty.

Minimum horsepower will be subject to change due to mowing conditions.
